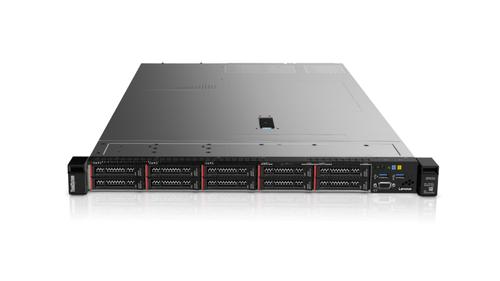

Lenovo ThinkSystem SR635 Server
1P/1U tuned for virtualization & Hybrid IT
- Large memory capacity
- Vast storage capacity
- Versatile storage configurations/AnyBay
- Flexible I/O configurations
- Scalable networking configurations
- Enterprise-class RAS features
- ThinkShield Security
Flexible design
ThinkSystem SR635 features up to 16x 2.5” drives meaning it is storage-rich and when outfitted with 16 low latency NVMe drives, it provides 60% more NVMe and IOPS/box for OLTP, Analytics, software-defined and HPC storage. It is also workload-hungry
featuring three singlewide graphic processing units (GPUs) and three PCIe Gen4 slots achieving up to 16 GT/s for increased acceleration and supporting 16 DIMMs with 2TB of DDR4 memory capacity ideal for in-memory database applications.
Right-sized, without compromise
AMD EPYC™ 7002 Generation Processors are the world’s first 7nm datacenter CPU with up to 64 cores and 128 lanes of PCIe Gen 4. Suitable to tackle dense virtualization, hosting and software-defined storage applications, they deliver up to 2x
performance and 4x floating point capability versus the previous generation.
Future-defined data center
Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield and XClarity to manage the lifecycle of your data center needs. ThinkSystem
SR635 provides support for virtualization (VDI), data analytics, cloud and much more.
Specifications
| Processor |
|---|
| Server category | Single processor |
| Processor family | AMD EPYC |
| Processor model | AMD EPYC 7282, 2.4 GHz |
| CPU cores | 16 |
| Clock speed | 2.4 GHz |
| CPUs (built-in / max.) | 1 / 1 |
| Storage medium |
|---|
| Compatible storage media | 6.4 cm (2.5") hot-swap |
| HDD | Optional |
| SSD | Optional |
| HDDs (built-in / max.) | Without backplane |
| RAM |
|---|
| RAM | 32 GB |
| RAM type | DDR4 ECC |
| Memory modules (built in / max.) | 1 / 16 |
| RAM (max.) | 1 TB |
| Drives |
|---|
| Drives | - |
| Operating system |
|---|
| Operating system | - |
| Supported operating systems | Microsoft Windows Server 2016 , Microsoft Windows Server 2019 , Red Hat Enterprise Linux 7.6 , Red Hat Enterprise Linux 8.0 , SUSE Linux Enterprise Server 12 SP4 , SUSE Linux Enterprise Server 15 SP1 , VMware vSphere 6.7 (ESXi) Update 3 , VMware vSphere 6.5 (ESXi) Update 3 |
| Features |
|---|
| RAID controller | Optional |
| Performance |
|---|
| PSUs (built in / max.) | 1 / 2 |
| Effective power (W) | 750 W |
| Includes |
|---|
| Includes | Tool-less rail kit , Power cable |
| Product type | Server |
| Manufacturer’s warranty | 3-year limited on-site service (see manufacturer's website for details) |
|---|
