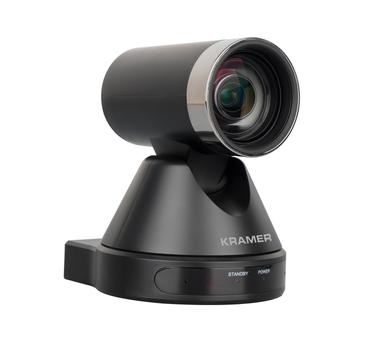

KRAMER K-CamHD | 1920x1080 | 12x Opt. Zoom | 72.5° Fov. | PTZ camera | Black
Du må logge inn for å handle/se priser.
|
|
KRAMER K-CamHD | 1920x1080 | 12x Opt. Zoom | 72.5° Fov. | PTZ camera | Black
|
K-CamHD
Features:
- 2D and 3D DNR and WDR technology
- 12x optical zoom and 16x digital zoom
- RS–232 and IR protocol communication
- H.264
Specifications:
PORTS
- USB 3.0: On a USB type B connector
- RS-232 IN: : On a VISCA connector
- RS-232 OUT: On a VISCA connector
CAMERA
- Pixel: 207M
- Video System: 1080P, 720P, 540P, 480P, 360P, 240P etc
- Sensor: 1/2.7inch, CMOS
- Scanning Mode: Progressive
- Lens: 12x, f3.5mm~42.3mm, F1.8 ~ F2.8
- Digital Zoom: 16x
- Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Shutter: 1/30s~1/10000s°
- White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR(2500K~8000K)
- Backlight Compensation: Support
- Digital Noise Reduction: 2D&3D Digital Noise Reduction
- Video S/N: ≥55dB
- Horizontal Angle of View: 72.5°~ 6.9°
- Vertical Angle of View: 44.8°~ 3.9°
- Horizontal Rotation Range: ±170
- Vertical Angle of View: 44.8°~ 3.9°
- Horizontal Rotation Range: ±170
- Vertical Rotation Range: –30°~ +30
- Pan Speed Range: 1.7°~ 100°/s
- Tilt Speed Range: 0.7°~ 28°/s
- H & V Flip: Support
- Image Freeze: Support
- Number of Presets: 255
- Preset Accuracy: 0.1°
VIDEO FORMAT
- YUY2 (BULK): Up to 1080P@30fps
- YUY2 (ISOC): Up to 1080P@30fps
- H.264 AVC: Up to 1080P@30fps
- H.264 SVC: Up to 1080P@15fps
- MJPEG: Up to 1080P@28fps
USB FEATURES
- Operating System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
- Color System / Compression: YUV 4:2:2 / H.264 / MJPEG
CONTROLS
- IR Remote Control Transmitter: OSD
- PC: Embedded web pages
POWER
- Source: 12V DC, 2A max
- Consumption: 12V DC, 800mA max
ENVIRONMENTAL CONDITIONS
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –20° to +60°C (–4° to 140°F)
- Humidity: 10% to 90%, RHL non–condensing
- Altitude: Below 5000 meters
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
- Safety: CE, FCC
- Environmental: RoHs, WEEE
ENCLOSURE
GENERAL
- Net Dimensions (W, D, H): 14.5cm x 9.8cm x 15cm (5.8" x 3.8" x 5.9")
- Shipping Dimensions (W, D, H): 23cm x 23cm x 25cm (9" x 9" x 9.8")
- Net Weight: 0.94kg (2.1lbs) approx
- Shipping Weight: 2.61kg (5.7lbs) approx
ACCESSORIES
- Included: Power adapter and cord, 1 USB–C cable, remote controller, wall bracket, screws set, lens cover
PRODUCT DIMENSIONS
- 14.50cm x 9.80cm x 15.00cm (5.71" x 3.86" x 5.91" ) W, D, H
PRODUCT WEIGHT
SHIPPING DIMENSIONS
- 23.00cm x 23.00cm x 25.00cm (9.06" x 9.06" x 9.84" ) W, D, H
SHIPPING WEIGHT
